Extend System Partition on a Windows Server 2003 VM using Dell ExtPart

This explains the steps to Expand C-drive on Windows 2003 server without downing the server. There is no native tool that enables extending system partitions (C:\ drives) on Server 2003.
There are multiple ways to perform this task, however, the only method that can be done online utilizes a Dell utility called ExtPart. It can perform the extension of the system partition with no downtime although sometimes booting into Safe Mode and then running ExtPart is necessary to clear locks on the disk.
Note: This applies to Server 2003 only, newer versions of Windows do not suffer from this limitation, Disk Management as well as the disk part are able to extend system partitions on-the-fly.
Procedures:
The first step is to download the ExtPart utility from (http://www.dell.com/support/home/us/en/04/Drivers/DriversDetails?driverId=R64398) link. Click on the Download File link and save it to your desktop. The file is a self-extracting zip file called ExtPart.exe per the below:

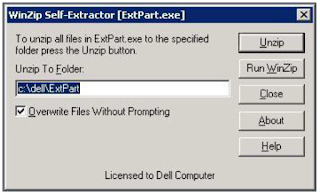

Double-click on it and accept the default path it will extract the utility to:

Click on Unzip and the files will be extracted successfully:

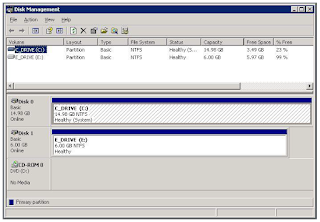

To demonstrate how useful ExtPart is we will use an example whereby our demo VM has a 15 GB C:\ drive and it needs to be increased to 30 GB. A screenshot of the current state of the C:\ drive is below:

We go into the VM settings and can see that the virtual disk is indeed 15 GB in size:

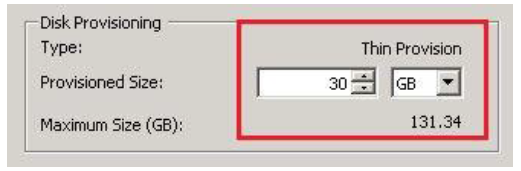

We increase the virtual disk size to 30 GB and apply the change:

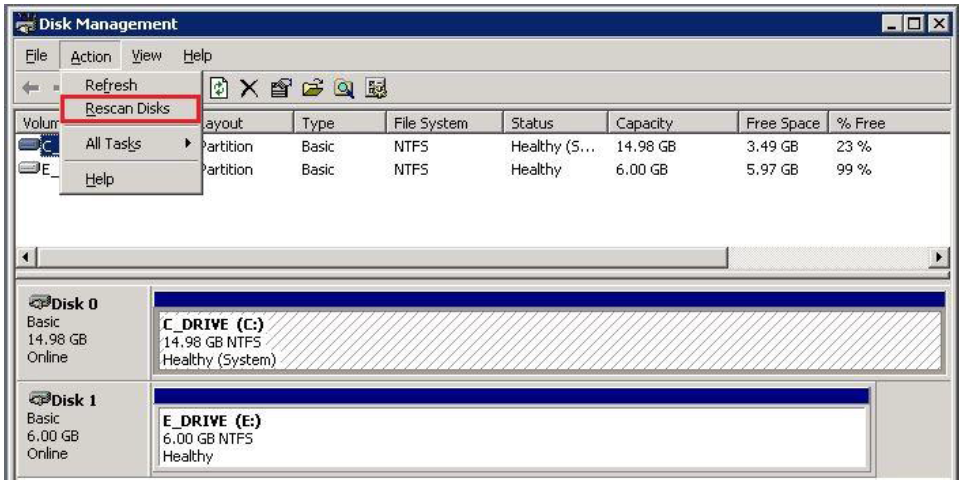

Within the VM load Disk Management and select Action > Rescan Disks so that the system sees the newly added 15 GB of storage:

After the re-scan completes you will now see the extra 15 GB of unallocated space:

Now we need to run the ExtPart utility expand the C:\ drive so that it utilizes the 15 GB of unallocated space. To proceed, open the command prompt and go to the location where you extracted the ExtPart utility, in my case, C:\dell\ExtPart:
C:\>cd C:\dell\ExtPart


Then run ExtPart.exe:
C:\dell\ExtPart>extpart.exe Enter the volume that is being expanded, in this example it is the C:\ drive so enter just C: without the backslash:
Volume to extend (drive letter or mount point): C: Then enter the amount in MB to increase the volume by, I entered 15343:
Size to expand the volume (MB): 15343 The output will confirm the new size of the volume (C:\ drive), which is 30678 MB:

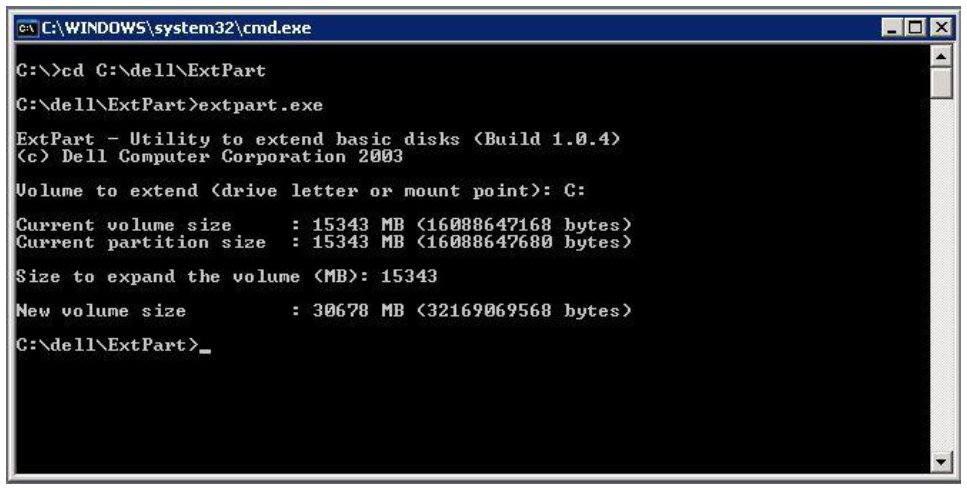

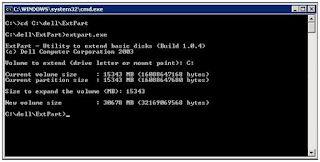

New volume size :30678 MB (32169069568 bytes) The full sequence of commands can be seen in the screenshot below:


When going back into Disk Management and re-scanning the disks, we can see that there is still31 MB that is unallocated:

To add that remaining 31 MB to the C:\ drive, we go back to ExtPart and perform the same series of steps but this time add 31 MB:

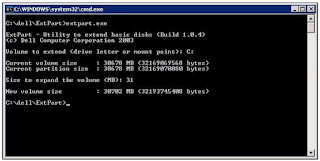

Size to expand the volume (MB): 31 A screenshot of those steps is below:

Now going back into Disk Management you can see that the C:\ drive is using all of the provisioned space in the disk:

Troubleshooting Steps:
If the utility returns an error such as “the disk is not accessible” or “unable to connect to C:”
1. Close Windows Disk Management console. It’s using Logical Disk Management service which extpart.exe is using.
2. Make sure there are no snapshots
3. Stop some non-essential services i.e.:
• Windows Search
• Indexing Service
Also stop Logical Disk Management Service If it shows running status.
